Outdoor Waterproof FTTH Fiber Optic Distribution Box for Easy Wall/Pole Installation

Model Number : 24-core terminal box distribution box

Type : Box Distribution

Place of Origin : Zhejiang, China

Brand Name : OEM

Use : Box Distribution For Fiber optic manufacture

Warranty Time : 1 year

Network : Wireless Lan, bluetooth, Wired LAN, GPRS, wifi, 4g, 3G

Product Name : 24 cores optical fiber distribution box

Dimension (mm) : 330(H)x225(W)x90(D)mm

Capacity : 24-core

appliance : FTTH FTTX

Mounting method : Wall mounted/Pole mounted

IP rate : IP65 IP68

Keywords : splitter box terminal box distribution box

Keywords1 : 24 core terminal box distribution box

Keywords2 : FTTH fttx outdoor terminal box distribution box

Keywords3 : waterproof IP65 terminal box distribution box

MOQ : 500 pieces

Price : $6.00/pieces 500-1999 pieces

Contact Now

Outdoor Waterproof 16 Cores FTTH Optical Fiber Optic Distribution Box ABS Material Wall/Pole Mounted with Wireless LAN Network

Products Description

The 24-core optical distribution box is independently developed and produced by own company, and the product performance meets the requirements of the industry standard YD/T2150-2010. It is mainly used in the terminal link of FTTX access system. The box is injection molded with high-strength ABS, which has good sealing and anti-aging properties, and can be used for outdoor wall mounting, pole mounting or indoor wall mounting.

Specification

Outdoor Waterproof FTTH Fiber Optic Distribution Box for Easy Wall/Pole Installation

Applicable environmental requirements：

Temperature：-40℃～+60℃

Humidness：≤95%（+40℃）

Atmospheric pressure：70KPa～108 KPa

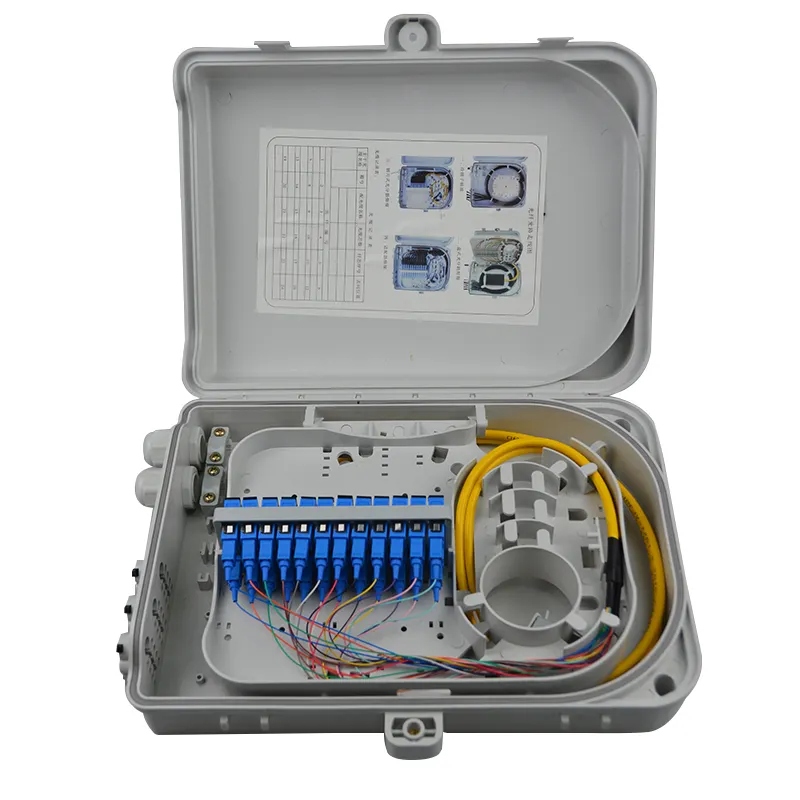

Box structure dimension： Box Size：330（H）×225（W）×90（D）mm。 Box Weight：1.3KG Box structure：The 24-core optical distribution box is mainly composed of a box, a splitter bracket, a fiber disc, a fixed grounding unit for the introduction of optical cables, a fixed fixed unit for butterfly optical cables, a sealing assembly, and a wire loop assembly. The box structure is shown in the figure.

Specifications and dimensions：

Configuration:

Product	Type and Specification	Quantity
Box	24core	1 PC
Sleeves	Ф1.5×60mm	24 PCS
Tape	3×100mm	6 PCS
Expansion bolt	M8×40mm	4Set
Key		1 PC

1. Are you a manufacturer or trade company?
We are the manufacturer with nearly 20 years' history.

2. What is your fiber brand?
Our fiber brands include: YOFC, Corning, Fiber Home, J-fiber, POFC

3. What is your main product?
Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord, and Fiber Terminal Box, except that, we have very good prices for part of the fiber tools!

4. How can we place order?
After we agreed on the product parameters, we will make proforma invoice for your confirmation, when we got your advance payment(deposit) we will arrange the production and delivery. If you have your ship forwarder, we will use your ship forwarder to deliver goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight costs!

5. What is the quality of your product?
All of our products are of high quality, we promise 100% recall policy if they are unqualified, we can write it into our contract!

6. How do you arrange the shipping?
Solution A: FIBCONET takes care of everything. Clients only need to collect cargo in locally or wait for cargo delivery to their office. There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can ship them according to your express account or ship them by our agent company, the delivery time is about four days). Solution B: Clients assign a Shenzhen logistic company to do the shipping, FIBCONET follows the company's instructions and finishes the shipping.

7. How can you guarantee the delivery time?
1To avoid the delay, we have built a complete and professional procedure system from production to delivery and have rich experience. We can regulate the penalty clause in the contract for the late delay.

8. What's your best price for your passive fiber optic product?
Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.

9. What is your quality control for your fiber optic product?
1. Source Guarantee. We have our long-term cooperation with raw material suppliers. All the products are ROHS certificated and satisfy exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to the finished product, such as package, surface,
physical test, and optical test. They are 100% tested.
3. Optical Test. Our products are strictly tested following IEC and ITU standards.
4. We have 30% spot test by Quality Assurance Department after the products are finished.

10. Why choose FIBCONET Fiber Optic to cooperate?
1. We have first-class production line and strict quality management system.
2. We have professional procedure system and big production capacity to guarantee fast delivery and on-time shipment.
3. We can provide the most competitive price to meet your budget.
4. We also design and innovate new products based on our rich experience.
5. We have professional team to provide comprehensive one-stop service for you.

Please always feel free to contact us for any questions, it's our honor to be in service of you!
