G657A1/G657A2 Waterproof Jumper Cable with IP67 Rating and SC APC/UPC Connectors

Model Number : FTTH pre-connection systemConnector

Type : FTTH Optic Waterproof Connector

Place of Origin : Zhejiang, China

Brand Name : OEM

Use : FTTH Optic Waterproof Connector

Warranty Time : 1 YEAR

Network : Wired LAN, TCP, GPRS, wifi, 4g, 3G

Waterproof Level : IP68 FTTH Optic Waterproof Connector

Product name : FTTH pre-connection systemConnector

Connector Types : SC FC

InstallationEnvironment : Indoor/Outdoor

Fiber Type : G657A1/G657A2

Fiber Count : Simplex

Operating Temperature : -40~85℃

Storage Temperature : -40~85℃

Connector Return Loss : SMF: UPC≥50, APC≥60 ;MMF: ≥30

Carton Dimension (HxWxD) : 330x330x330mm

MOQ : 100 pieces

Price : $0.50/pieces 100-4999 pieces

Contact Now

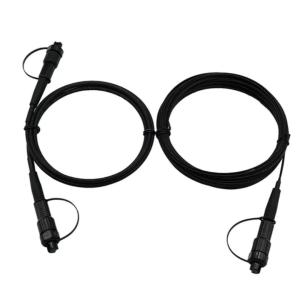

G657A1/G657A2 Introducing Cable Jumper Waterproof Rating IP67 SC APC SC UPC Waterproof Connector/Header with Connectors Jumper

Products Description

The Waterproof Connector Cable Assemblies is designed for use in outside plant fibre access networks. This terminal provides sealed environmental protection and fast, easy incremental connection of subscriber drop cables while increasing deployment velocity. Its reliability and flexibility make it the ideal choice for outside plant underground fibre access networks, including network access point terminals in fibre-to-the-home (FTTH) network deployments. The Cable Assemblies is built with Corning ClearCurve Optical Fibre — the revolutionary bend-insensitive optical fibre and cable that ensures vir-tually no attenuation loss, even in tight bends with a bend

G657A1/G657A2 Waterproof Jumper Cable with IP67 Rating and SC APC/UPC Connectors

Specification

Key Features

1：Cost effective solution for in house termination 2：Low insertion loss and added loss 3：Height of attenuation. 4：IP67 water, dust proof and corrosion resistant 5：The material in the jumpel cable are all-weather and UV-resistant. 6：Mechanical performance: IEC 61754-4 standard. 7：RoHS and REACH materials compliant.

Application

1：Telecommunication networks 2：Outdoor communication equipment connection 3：Remote wireless base station 4：FTTX applications

Product Paramenters

Optical Characteristics
Connector Insertion Loss	Standard：max≤0.75dB; (Typical≤0.35dB) Elite： max≤0.35dB; (Typical≤0.15dB)
Connector Return Loss	SMF: UPC≥50, APC≥60 ；MMF: ≥30
Fiber Attenuation	1310 nm≤0.36 dB/km ; 1550 nm≤0.22 dB/km 850 nm≤3.0 dB/km ; 1300 nm≤1.0 dB/km

Details Images

1. Are you a manufacturer or trade company?

We are the manufacturer with nearly 20 years' history.

2. What is your fiber brand?

Our fiber brands include: YOFC, Corning, Fiber Home, J-fiber, POFC

3. What is your main product?

Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord, and Fiber Terminal
Box, except that, we have very good prices for part of the fiber tools!

4. How can we place order?

After we agreed on the product parameters, we will make proforma invoice for your confirmation, when we got your advance payment
(deposit) we will arrange the production and delivery. If you have your ship forwarder, we will use your ship forwarder to deliver
goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight
costs!

5. What is the quality of your product?

All of our products are of high quality, we promise 100% recall policy if they are unqualified, we can write it into our contract!

6. How do you arrange the shipping?

Solution A: FIBCONET takes care of everything. Clients only need to collect cargo in locally or wait for cargo delivery to their
office. There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can
ship them according to your express account or ship them by our agent company, the delivery time is about four days).
Solution B: Clients assign a Shenzhen logistic company to do the shipping, FIBCONET follows the company's instructions and finishes the shipping.

7. How can you guarantee the delivery time?

1To avoid the delay, we have built a complete and professional procedure system from production to delivery and have rich
experience. We can regulate the penalty clause in the contract for the late delay.

8. What's your best price for your passive fiber optic product?

Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.

9. What is your quality control for your fiber optic product?

1. Source Guarantee. We have our long-term cooperation with raw material suppliers. All the products are ROHS certificated and
satisfy exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to the finished product, such as package, surface,
physical test, and optical test. They are 100% tested.
3. Optical Test. Our products are strictly tested following IEC and ITU standards.
4. We have 30% spot test by Quality Assurance Department after the products are finished.

10. Why choose FIBCONET Fiber Optic to cooperate?

1. We have first-class production line and strict quality management system.
2. We have professional procedure system and big production capacity to guarantee fast delivery and on-time shipment.
3. We can provide the most competitive price to meet your budget.
4. We also design and innovate new products based on our rich experience.
5. We have professional team to provide comprehensive one-stop service for you.

Please always feel free to contact us for any questions, it's our honor to be in service of you
Features!
