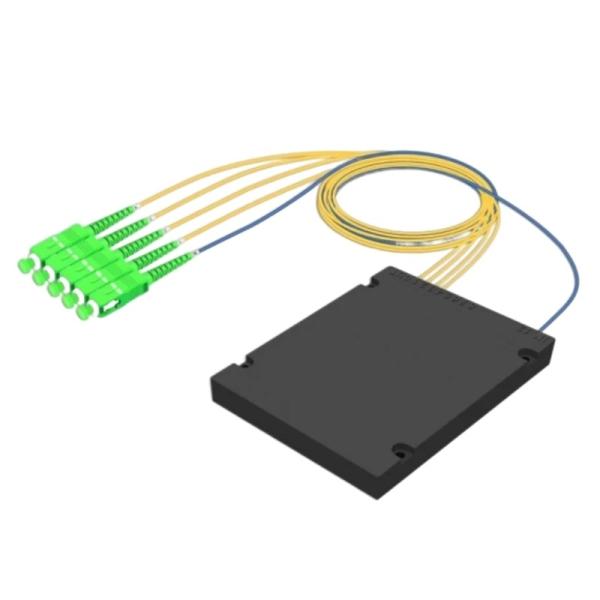

Mini Tube/ABS Box/Plug-in PLC Splitter 1x4 1x8 SC APC for Fiber Optic FTTH and 3

Model Number : 1x 4 plc splitter

Type : PLC splitter, ABS box/Mini tube/lgx

Place of Origin : NINGBO

Brand Name : FIBCONET

Use : Fttx

Warranty Time : 3 year

Network : Wireless Lan, Wired LAN, None, wifi

Product name : PLC splitter

Connector type : SC APC/UPC

Fiber Type : G652D/G657A1/G657A2

Package : 1PCS Per Bag or Box 600PS Per Carton

Material : PVC LSZH

Keywords1 : PLC splitter

Keywords2 : 1*4 PLC splitter

Keywords3 : 1*8 fiber optic splitter

Packaging Details : 1 PC/Blister Bag

Port : NINGBO CHINA

Supply Ability : 200000 Piece/Pieces per Month

MOQ : 100 pieces

Price : $3.60/pieces 100-999 pieces

Contact Now

Products Description
Our 1x4/1x8 PLC Splitter is a reliable and cost-effective solution for splitting fiber optic signals. Fiber optic splitter is designed to split one input signal into eight output signals, making it ideal for use in FTTx applications such as FTTH, FTTC, and FTTB.
Mini Tube/ABS Box/Plug-in PLC Splitter 1x4 1x8 SC APC for Fiber Optic FTTH and 3
Mini Tube/ABS Box/Plug-in PLC Splitter 1x4 1x8 SC APC for Fiber Optic FTTH and 3
Mini Tube/ABS Box/Plug-in PLC Splitter 1x4 1x8 SC APC for Fiber Optic FTTH and 3
Mini Tube/ABS Box/Plug-in PLC Splitter 1x4 1x8 SC APC for Fiber Optic FTTH and 3
Application
Mini Tube/ABS Box/Plug-in PLC Splitter 1x4 1x8 SC APC for Fiber Optic FTTH and 3






APPLICATIONS
· FTTx
· Cable television (CATV)
· Local area networks (LAN)
· Test equipment
· Passive optical networks(PON)


FEATURE
· Wide operating wavelength range: from 1260nm to 1650nm
· Wide Operating Temperature: from -40ºC to 85ºC
· Good channel-to-channel uniformity
· High reliability and small size
· Adopt high-strength stainless steel, pass the salt spray test
· Adopt 100% new raw material, ROHS compliance
· Low Insertion loss&Low PDL Compact Design
Mini Tube/ABS Box/Plug-in PLC Splitter 1x4 1x8 SC APC for Fiber Optic FTTH and 3
Product Paramenters
1xN PLC Splitter Specification
Operating Wavelength(nm)
1260~1650
Fiber Type
G657A1 or as customers' order
Port Configuration
1x2
1x4
1x8
1x16
1x32
1x64
1x128
Insertion Loss (dB)
3.8/4.0
7.1/7.3
10.2/10.5
13.5/13.7
16.5/16.9
20.5/21.0
23.8/24.2
Loss Uniformity (dB)
0.4
0.6
0.8
1.2
1.5
2.0
2.5
Polarization Dependent Loss(dB)
0.2
0.2
0.2
0.25
0.3
0.35
0.4
Wavelength Dependent Loss(dB)
0.3
0.3
0.3
0.5
0.5
0.5
0.5
Temperature Dependent Loss (-40~85 ) (dB)
0.4
0.4
0.4
0.5
0.5
0.5
0.5
Return Loss (dB)
55/50
Operating Temperature
-40~+85
Directivity (dB)
≥ 55
Storage Temperature
-40~+85
2xN PLC Splitter Specification
Operating Wavelength(nm)
1260~1650
Fiber Type
G657A1 or as customers' order
Port Configuration
2x2
2x4
2x8
2x16
2x32
2x64
2x128
Insertion Loss (dB)
4.0
7.6
11.0
14.4
17.5
21.0
24.5
Loss Uniformity (dB)
0.6
1.0
1.2
1.5
1.8
2.2
2.5
Polarization Dependent Loss(dB)
0.2
0.2
0.3
0.3
0.35
0.4
0.4
Wavelength Dependent Loss(dB)
0.3
0.4
0.5
0.5
0.5
0.5
0.5
Temperature Dependent Loss (-40~85 ) (dB)
0.4
0.4
0.5
0.5
0.5
0.5
0.5
Return Loss (dB)
55/50
Operating Temperature
-40~+85
Directivity (dB)
≥ 55
Storage Temperature
-40~+85
Mini Tube/ABS Box/Plug-in PLC Splitter 1x4 1x8 SC APC for Fiber Optic FTTH and 3
Mini Tube/ABS Box/Plug-in PLC Splitter 1x4 1x8 SC APC for Fiber Optic FTTH and 3
Q: The location of our factory?

A: Our factory is located in Ningbo, Zhejiang, and our new factory has also been put into production, located in the Northeast
(Jilin Province).

Q: An occupied area for our factory?

A: The construction area of our factory is about 23,000 square meters, including 8000 square meters in Fenghua Plant and 15,000
square meters in Northeast China.

Q: Production capacity for the PLC splitter?

A: 800,000 pcs per month.

Q: What's your best price for your passive fiber optic product?

A: Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the
time.

Q: Do you offer a guarantee for the products?

A: Yes, we offer a 1-2 years warranty on our formal products.
