1 * 8-way ABS Box SC APC UPC Multiplexer FTTH Optical PLC Splitter for GPON EPON Fiber

Name: 1 8way ABS Box SC APC UPC Multiplexer FTTH Optical PLC Splitter for GPON EPON Fiber
Brand: FIBCONET optical PLC splitter
Price: 3.60 USD

China 1 * 8-way ABS Box SC APC UPC Multiplexer FTTH Optical PLC Splitter for GPON EPON Fiber factory

Model Number : FTTH optical PLC splitter

Type : FTTH optical PLC splitter, ABS box FTTH optical PLC splitter

Place of Origin : NINGBO

Brand Name : FIBCONET optical PLC splitter

Use : Fiber optical PLC splitter manufacture

Warranty Time : 1 year

Network : None

Product name : FTTH optical PLC splitter

Connector type : SC APC/UPC FTTH optical PLC splitter

Fiber core : 1x8/1x32/1x16 FTTH optical PLC splitter

Fiber Type : G657A1 G657A2 FTTH optical PLC splitter

Operating temperature : -40℃~+85℃ FTTH optical PLC splitter

Operating Wavelength : 1260nm~1650nm FTTH optical PLC splitter

keywords1 : optical FTTH optical PLC splitter

keywords2 : ABS box optical FTTH optical PLC splitter

keywords3 : ABS BOX FTTH optical PLC splitter

Packaging Details : 1 Fiber hub Box per small carton box

Port : FTTH optical PLC splitter From NINGBO CHINA

Supply Ability : 200000 Piece/Pieces per Month Fiber hub Box

MOQ : 500 pieces

Price : $3.60/pieces 500-4999 pieces

Contact Now

FTTH GPON EPON Fiber Splitter Fiber PLC Splitter 1 * 8-way ABS Box SC APC UPC

1 * 8-way ABS Box SC APC UPC Multiplexer FTTH Optical PLC Splitter for GPON EPON Fiber

DESCRIPTION

Planar light-wave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica
optical waveguide technology. It is used to split a fiber optic beam into several beams at a certain splitting ratio. It is an
important passive device in passive optical network.

APPLICATIONS

· FTTx
· Cable television (CATV)
· Local area networks (LAN)
· Test equipment
· Passive optical networks(PON)

FEATURE

· Wide operating wavelength range: from 1260nm to 1650nm
· Wide Operating Temperature: from -40ºC to 85ºC
· Good channel-to-channel uniformity
· High reliability and small size
· Adopt high-strength stainless steel, pass the salt spray test
· Adopt 100% new raw material, ROHS compliance
· Low Insertion loss&Low PDL Compact Design

2xN PLC Splitter Specification
Operating Wavelength(nm)					1260~1650
Fiber Type					G657A1 or as customers' order
Port Configuration	2x2	2x4	2x8	2x16	2x32	2x64	2x128
Insertion Loss (dB)	4.0	7.6	11.0	14.4	17.5	21.0	24.5
Loss Uniformity (dB)	0.6	1.0	1.2	1.5	1.8	2.2	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.35	0.4	0.4
Wavelength Dependent Loss(dB)	0.3	0.4	0.5	0.5	0.5	0.5	0.5
Temperature Dependent Loss (-40~85 ) (dB)	0.4	0.4	0.5	0.5	0.5	0.5	0.5
Return Loss (dB)							55/50
Operating Temperature							-40~+85
Directivity (dB)							≥ 55
Storage Temperature							-40~+85

Products Description

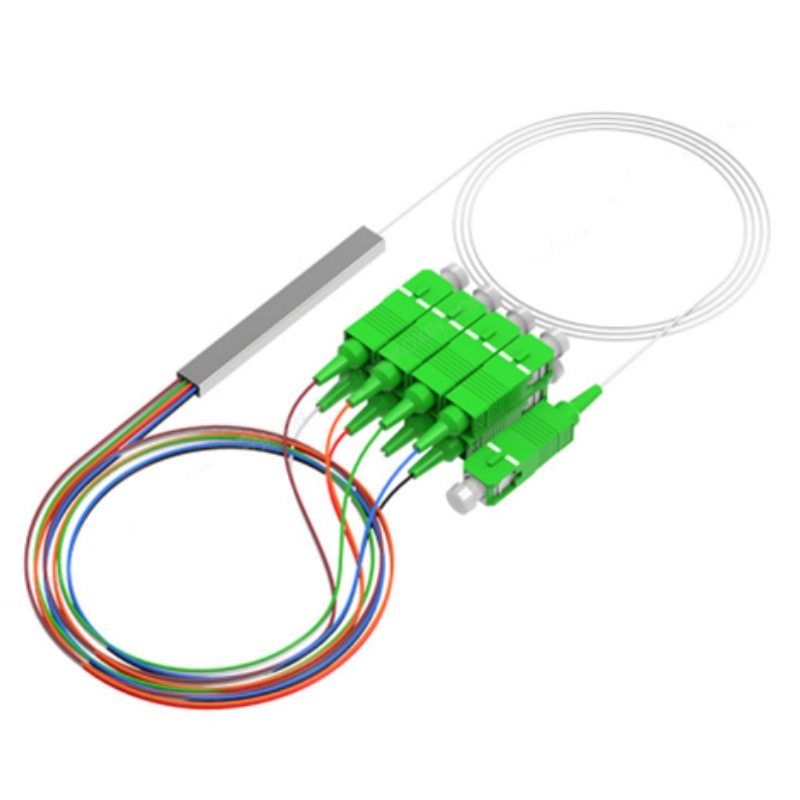

The mini plc splitter is packaged with steel pipe, and the fiber outlet uses a 0.9mm loose tube. It is a PLC optical splitter with a connector plug and is used in scenarios with small installation space.
The design of mini PLC splitter is suitable for fiber optic closure installation, the material of seal packet is stainless steel.

APPLICATIONS

· FTTx

· Cable television (CATV)

· Local area networks (LAN)

· Test equipment

· Passive optical networks(PON)

FEATURE

· Wide operating wavelength range: from 1260nm to 1650nm

· Wide Operating Temperature: from -40ºC to 85ºC

· Good channel-to-channel uniformity

· High reliability and small size

· Adopt high-strength stainless steel, pass the salt spray test · Adopt 100% new raw material, ROHS compliance

· Low Insertion loss&Low PDL Compact Design

Specification

1xN PLC Splitter Specification
Operating Wavelength(nm)					1260~1650
Fiber Type					G657A1 or as customers' order
Port Configuration	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Insertion Loss (dB)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0	23.8/24.2
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35	0.4
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5	0.5
Temperature Dependent Loss (-40~85 ) (dB)	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Return Loss (dB)							55/50
Operating Temperature							-40~+85
Directivity (dB)							≥ 55
Storage Temperature							-40~+85

Packing & Delivery

CUSTOMIZED PACKAGING OPTIONS

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FTTH optical PLC splitter APPLICATIONS

· FTTx
· Cable television (CATV)
· Local area networks (LAN)
· Test equipment
· Passive optical networks(PON)

FTTH optical PLC splitter FEATURE

1 * 8-way ABS Box SC APC UPC Multiplexer FTTH Optical PLC Splitter for GPON EPON Fiber Images
